RI System

H

Remote Imaging System

RI-System

The Remote Imaging System (RI) consists of three logical units:

  • Triple Imaging Shelf (TIS)
  • Server/Storage Unit (SU)
  • Remote Terminal (RT)

The advantages of the RI system are its flexibility, its ability to cater for special wishes, and the possibility of seperating the units and its high scalability.

For example you can intergrate the server into an existing server room, use it with the existing storage systems, and monitor the TIS units from your work place. From the comfort of your desk you can easily make an 'image' of the suspect device and store it, whilst simultaneously examining the investigators previously stored data. Connecting via fibre optic cable gives you a distance of up to 50 meters, which can easily be covered. The system is controlled remotely by either a special terminal, a workstation, or with your laptop. Through 'clustering' RI systems can be freely 'scaled' and adopted to individual needs.

Key Features

  • High speed imaging of 6 devices simultaneously up to 185MB/s
  • All types of interfaces: PCl-e/ SATA/ IDE/ SAS/ USB/ FireWire
  • Distance to destination up to 50m
  • Fibre optic connection between target und destination

Schematical function:


Server/Storage Unit

Computer Case:
2U Server Chassis with Rack mount Kit

Power Supply:
Redundant Power Supply

Mainboard:
Dual socket LGA 2011 support Intel® Xeon® Intel® chipset

CPU:
2x XEON E5-Series

RAM:
up to 1024GB RAM

HDD:
2x HDD RAID as System dirve
8x 3,5"" Hot-swap Drive Bays up to 32TB local storage

Cache:
SSD as Cache/Swap drive for system acceleration

Input/Output:
12x USB 3.0
2x Gigabit LAN
1x 10GB Fiber Channel

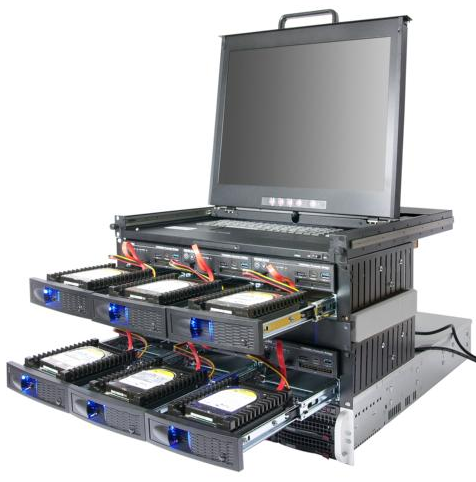

Triple Imaging Shelf

Computer Case:
2x 19" 2U Rack mount
1x 19" 1U Switch and contol unit

Forensic Bridge:
(2x) 3x Tableau T35689iu SATA/IDE/SAS/USB/FireWire

Cooling-Tray:
(2x) 3x ICE TRAY 5.25"
The Basic Edition consists of 2 Triple Imaging Shelfs

USB 3.0 Extender:
3x 2 port USB 3.0 to fiber Channel Extender
3 x 50m Mulitmode Fiber Channel Cabel

Periphery:
1 x 19" Rack mount Display KVM Konsole

Software:
Elective Windows Server 2016, Linux or dual boot
